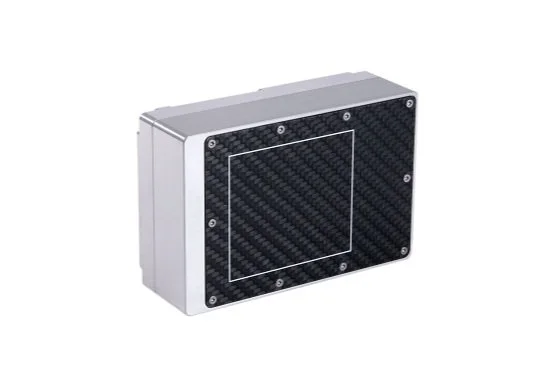

The 0606HR is a dynamic X-ray detector designed for industrial NDT, electronics inspection and pre-clinical applications, with a pixel pitch of 50 μm and a choice of high-resolution CsI or Gadox scintillator. It is ideal for CBCT and real-time inspection.

Innovative sensor design enables a frame rate of up to 59 fps with USB 3.0 and 40 fps with the GigE interface. The flexible region of interest function allows a region to be configured to optimise the frame rate.

This detector employs a state-of-the-art CMOS sensor with 14-bit digital outputs and two gain modes offering a high dynamic range mode or a high sensitivity mode ideal for low dose, real-time imaging. The sensor is permanently bonded to a fibre optic plate (FOP) to enhance image quality and make the device more radiation tolerant. The detector housing contains lead shielding to provide protection against radiation damage.

For developers, an SDK is available with DLLs for 64-bit Windows and Linux. These include C++ and .NET wrappers for easy integration with customised software. Library functions include dark, gain and defect corrections. Example code is provided, including a simple Graphical User Interface. The SDK supports Camera Link, GigE and USB 3.0 communications.

Version 2.3

Unless otherwise specified, Spectrum Logic X-ray Detectors are components intended to be integrated into products by X-ray system manufacturers. System manufacturers are responsible for qualifying and validating their products for their intended uses and meeting all applicable regulatory requirements. Contents in this document are subject to change without notice.

©2021 Spectrum Logic Limited. All Rights reserved.

SPECTRUM LOGIC Limited Highgate Business Centre, 33 Greenwood Place, London NW5 1LB, UK
